0.45μM Pore Size Hydrophobic PTFE Syringe Filters For HPLC And GC Sample Prefiltering

  • 1
  • 2
  • 3

Brand Name : no

Model Number : XNSF

Certification : ISO9001

Place of Origin : China

MOQ : 300 packs

Price : $6.00 to $15 per pack

Payment Terms : L/C, T/T

Delivery Time : 15 to 30 days

Packaging Details : 100 pcs/pack standard export carton packaging or custom

Product Name : PTFE Syringe Filter

Diameter : 13mm/25mm/30mm/33mm

Filter Medium : PTFE

Pore Size : 0.22μm/0.45μm/1.2μm/2μm/3μm/5μm

Housing : Polypropylene

Max Operating Temperature : 60℃(140℉)

Sterilization : ETO, Gamma irradiation

OEM : Available

Contact Now

0.45μm Pore Size PTFE Syringe Filters Hydrophobic for Lab Filtration

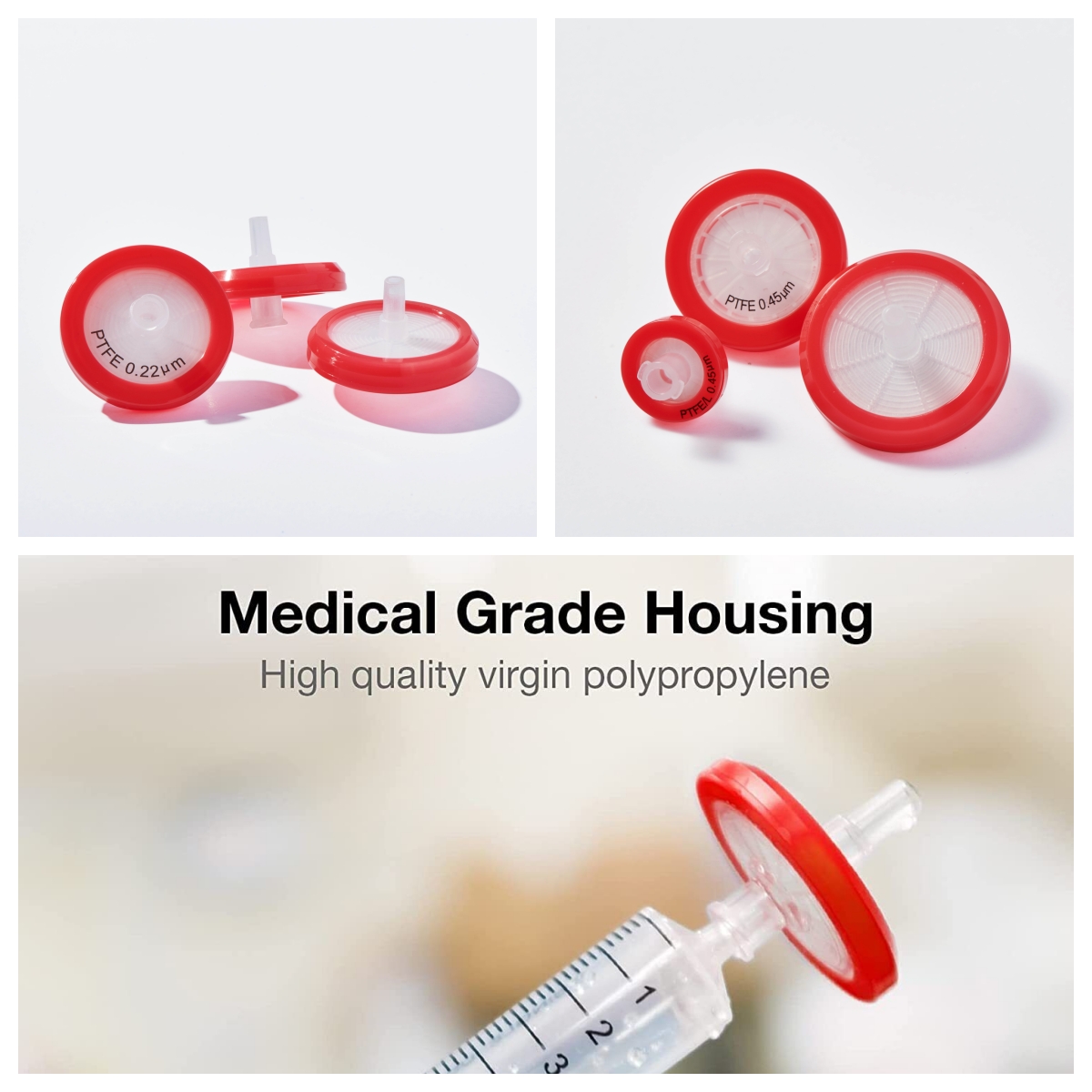

Syringe filters offer easy-handling microfiltration for HPLC sample preparation and other life science laboratory filtration applications such as filtration of cell and tissue culture media etc. Polytetra fluoroethylene PTFE Syringe Filters from us consist of premium PTFE membranes and high quality PP housing. These syringe filters are highly recommended for HPLC and GC sample prefiltering, gas filtration, sterile venting and sterilization and clarification of most solvents.

Key features of PTFE Syringe Filters

  • Hydrophobic polytetrafluorethylene (PTFE) membrane
  • Very high flow rate
  • Excellent chemical resistance to most solvents and acids
  • Low dead volume
  • Resistance to various chemical solvents
  • Free from wetting agents
  • Sterilization by autoclaving at 121ºC or by ethylene oxide
  • They must be pre-wetted with a polar solvent such as ethanol or isopropanol before filtering aqueous samples

The PTFE membranes of the syringe filters are manufactured by ourselves in our 100,000 grade cleanrooms, and the housing production and product- assembly are done in our own automatic injection-molding facilites. This makes us stand out from other manufacturers who have to purchase the membranes and shells to complete the assembly, and makes us more flexible and competitive on pricing. And we offer free sample service, contact us and you'll get desirable products at amazing price!

Specifications

PTFE syringe filters from us are available in two pore sizes – 0.22 and 0.45µm, and different diameters – 13, 25,30mm (33mm).

Diameter Housing material Fitting inlet Fitting outlet Filter area (cm²) Sample volume (ml) Hold-up volume (μl) Max. pressure (bar) Max. Operating Temp. (ºC) Method of sterilization Pack Size
13mm Polypropylene Female Luer-Slip Male Luer-Slip 1 <10 < 25 6 60 Gamma-radiation 100
25mm Polypropylene Female Luer-Slip Male Luer-Slip 3 <100 < 100 6 60 Gamma-radiation 100
30mm Polypropylene Female Luer-Slip Male Luer-Slip 4.5 <200 < 200 6 60 Gamma-radiation 100

Applications

The PTFE Syringe filters from us are available in sterile and non-sterile packs, sterile syringe filters are typically used in life science applications while non-sterile syringe filters are utilized in analytical chemistry including for filtration, sample preparation and contaminant particle removing.

• Sterilization (0.22 μm) and clarification (0.45 μm) of most acids and aggressive solvents

• Filtration and degassing of solvents prior to analysis (0.45 µm)

• Venting of sterile containers (0.22 µm)

• Sterilization of air, gas and aerosol (0.22 µm)

• Tool for protection within vacuum pump (0.22 µm)

• Clarification of small volume samples for HPLC and GC applications, which require greater chemical resistance than other types of syringes filters (0.45 µm)

• Clarification and sterilisation of organic solutions
